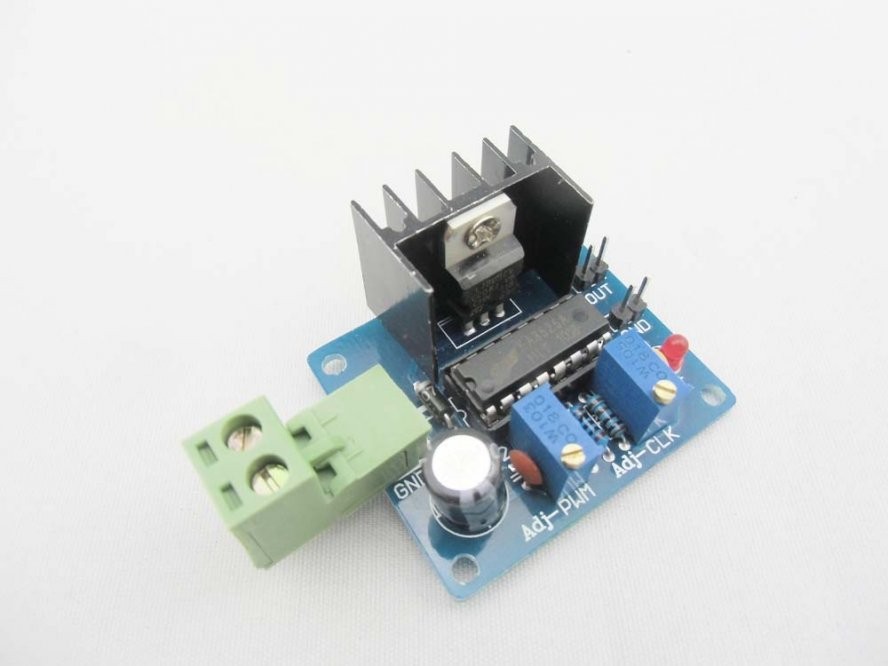

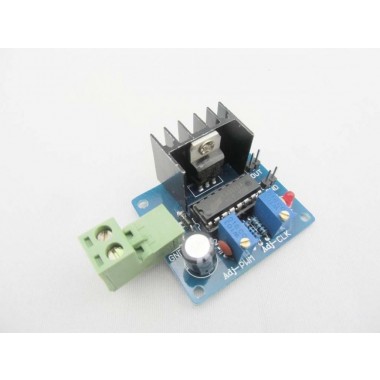

PWM Frequency And Duty Adjustable Module- SG3525
Modulo generador de PWM con frecuencia y ciclo de trabajo ajustables
COD: EASG3525PWM
Peso: 0.060 Kg
Disponibilidad: En Stock
ARS 12064.00
El producto no está disponible para la venta en este momento
Características
This PWM Frequency and Duty Adjustable Module is based on the PWM controller SG3525, it offer improved performance and lower external parts count when implemented for controlling all types of switching power supplier. This module can be used to drive IGBT directly thus to control the motors.
Specification
- Size: 55x 42x30mm
- Power supply: 8~12 VDC
- Max Output Current?200mA
- Output Voltage: 5V
- Frequency Range:100~10 kHz
- Duty Range: 0%~100%
