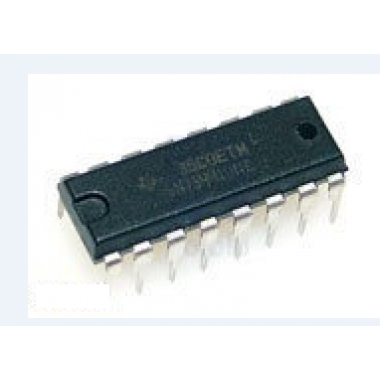

SN754410 Motor Driver IC
Driver para control bidireccional de dos motores DC o un motor Paso a Paso.
COD: P000024
Peso: 0.001 Kg
Disponibilidad: Sin Stock
ARS 7107.00
El producto no está disponible para la venta en este momento
Características
This TI SN754410 motor driver features two H-bridges that can be used for bidirectional control of two DC motors or to control a single stepper motor. It operates from 4.5 to 36 V and can deliver a peak current of 1 A per channel (the continuous current you can deliver depends on how well you can keep the driver IC cool).
The SN754410NE from Texas Instruments is a quadruple half-H driver that can be used for bidirectional control of two DC motors or to control a single bipolar stepper motor. You can use this item as a replacement part, to stack on an existing motor controller, or to make your own motor or other high-current device controller.
This integrated motor driver has the same pinout as the L293 that is popular in robotics applications, and the SN754410NE has the additional benefits of built-in protection diodes across the power transistors and output current capability of 1 A per driver. For even higher current applications, it is possible to physically stack two devices on top of each other to get almost 2 A of drive current, though we recommend you use a higher power driver in those cases, such as our DRV8835 dual motor driver carrier or DRV8833 dual motor driver carrier.
TI SN754410 (16-pin DIP) next to the DRV8835 dual motor driver carrier (14-pin DIP) for size reference. |
---|
