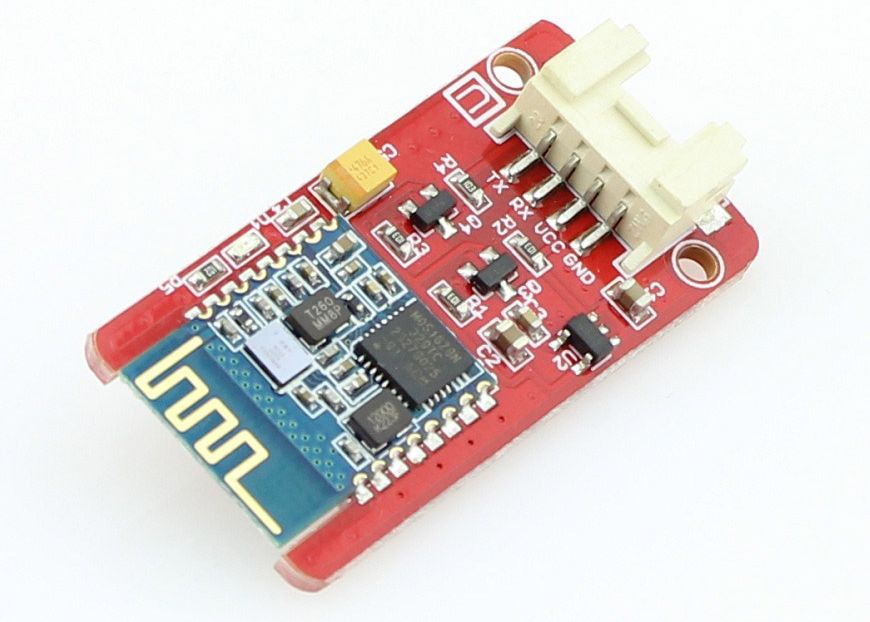

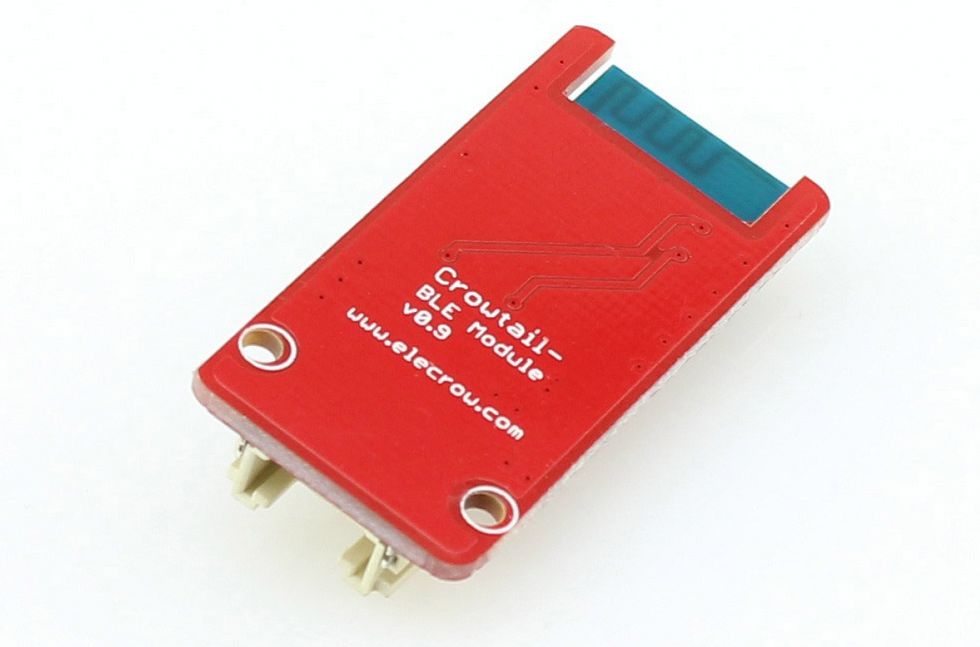

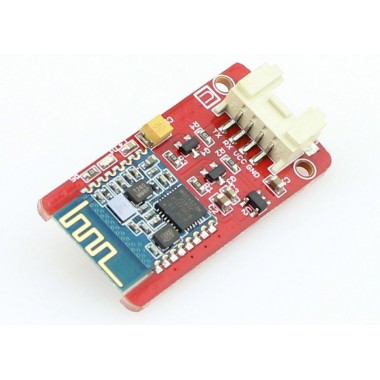

Crowtail- Blutooth Low Energy Module
Módulo Bluetooth de baja energía de 2.4GHz ISM band, compatible con V4.0 EDR + BLE
COD: ECT0018BLE
Peso: 0.004 Kg
Disponibilidad: En Stock
ARS 30728.00
El producto no está disponible para la venta en este momento
Características
Crowtail- Blutooth Low Energy Module HM-13 is an easy to use module compatible with the existing Crowtail Base Shield, and designed for transparent wireless serial connection setup. The serial port Bluetooth module is fully qualified BT Version V4.0 EDR + BLE dual mode with complete 2.4GHz radio transceiver and baseband. It has the smallest footprint of 13.8mm x 18mm. Hope it will simplify your overall design/development cycle.
Features
- BT Version: Bluetooth Specification V4.0 BLE
- Working frequency:2.4GHz ISM band
Part List
- 1 X Crowtail- Blutooth Low Energy Module
- 1 X Crowtail 4 Pin Cable
Wiki & External links
- Blutooth Low Energy Module Schematic
- Blutooth Low Energy Module Program
- HM-13 reference
crowtail-_blutooth_low_energy_module_eagle_files.zip (26 Kb)
