Adafruit DRV2605L Haptic Motor Controller
Controlador para motores de vibración.
COD: D002305
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 19312.00
El producto no está disponible para la venta en este momento
Características
DESCRIPTION
The DRV2605 from TI is a fancy little motor driver. Rather than controlling a stepper motor or DC motor, its designed specifically for controlling hapticmotors - buzzers and vibration motors. Normally one would just turn those kinds of motors on and off, but this driver has the ability to have variouseffects when driving a vibe motor. For example, ramping the vibration level up and down, 'click' effects, different buzzer levels, or even having the vibration follow a musical/audio input.
This chip is controlled over I2C - after initialization, a 'string' of multiple effects can be strung together in the chips memory and then triggered to actuate in a row. The built in effects are much much nicer than just 'on' and 'off' and will make your haptic project way nicer feeling.
According to the product page, it can be used with both LRA (Linear Resonance Actuator) and ERM (Eccentric Rotating Mass) type motors but we have only used it with our little vibration pancake ERM.

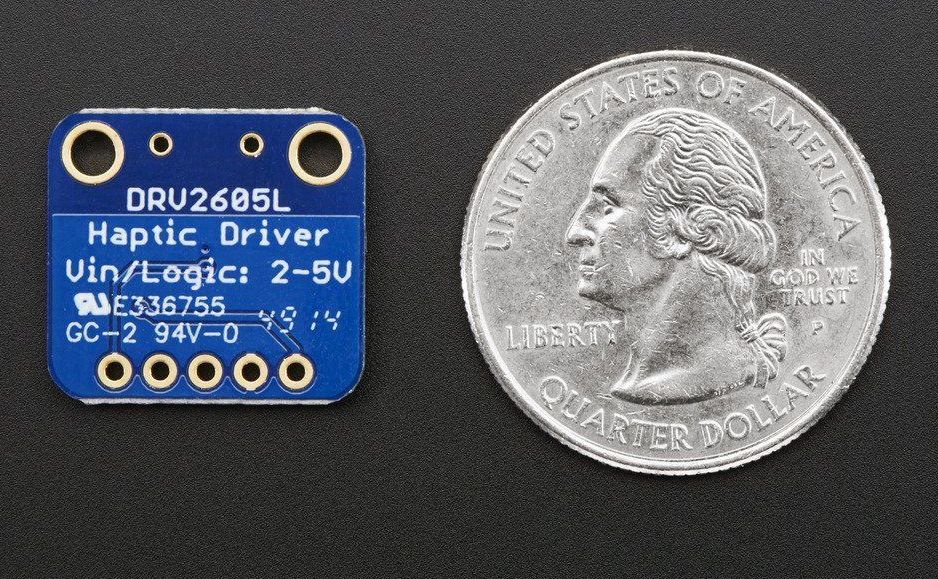

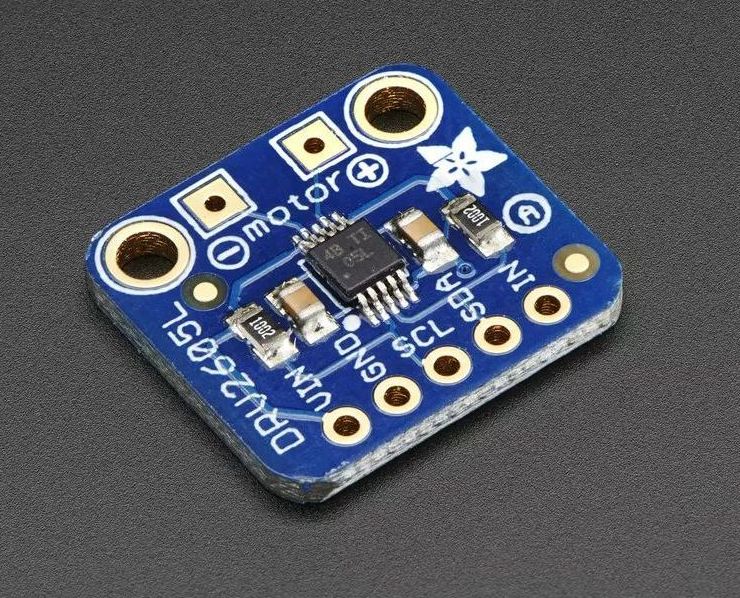

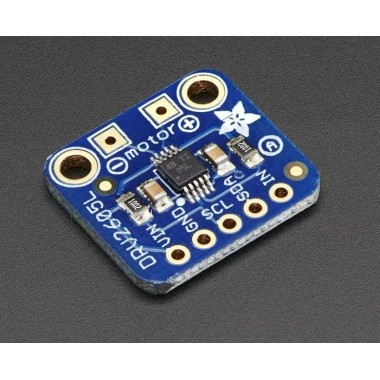

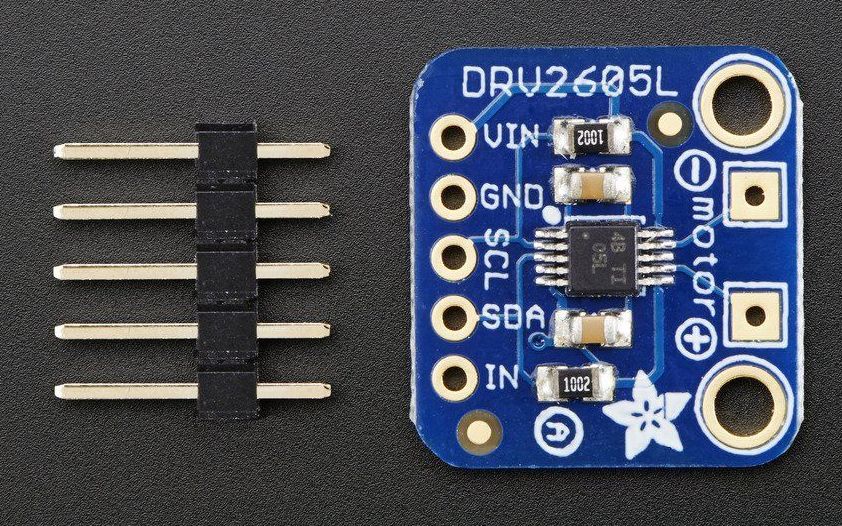

We put this nice chip onto a breakout board. it works with both 3V and 5V power/logic, we have code specifically for Arduino but porting it to any I2C-capable processor should be quite simple. Check it out and get buzzing!
TECHNICAL DETAILS
- Dimensions: 18mm x 17mm x 2mm / 0.7" x 0.7" x 0.1"
- 1.0g
- Datasheet
drv2605l.pdf (2692 Kb)
