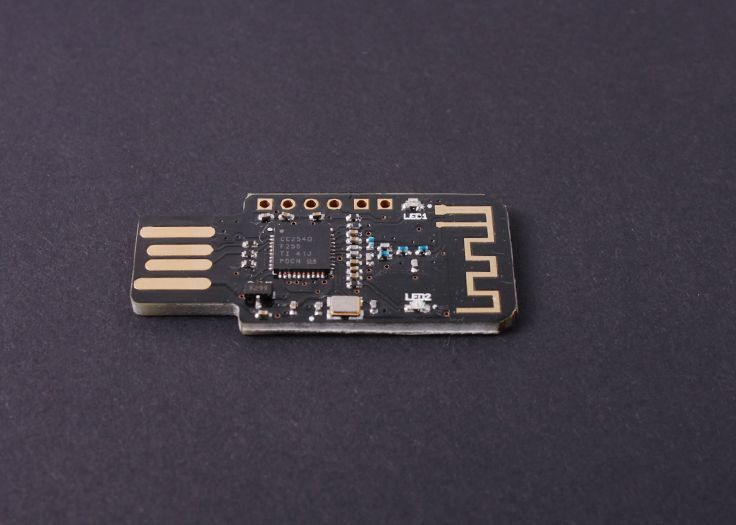

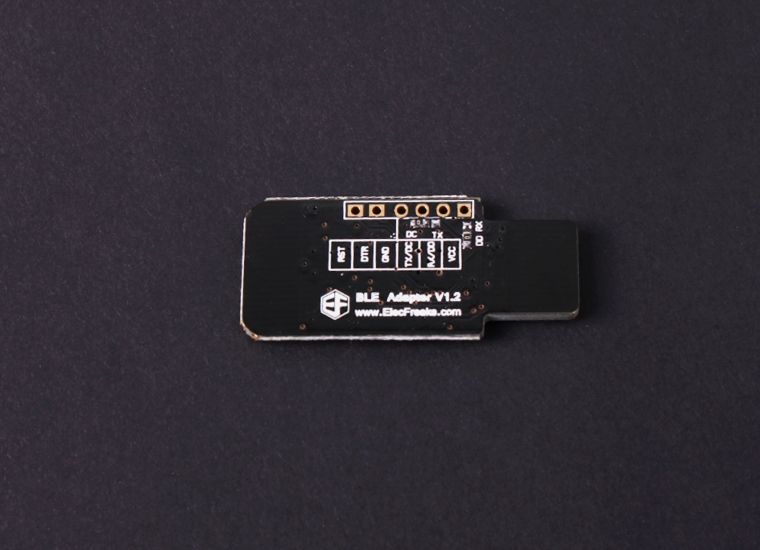

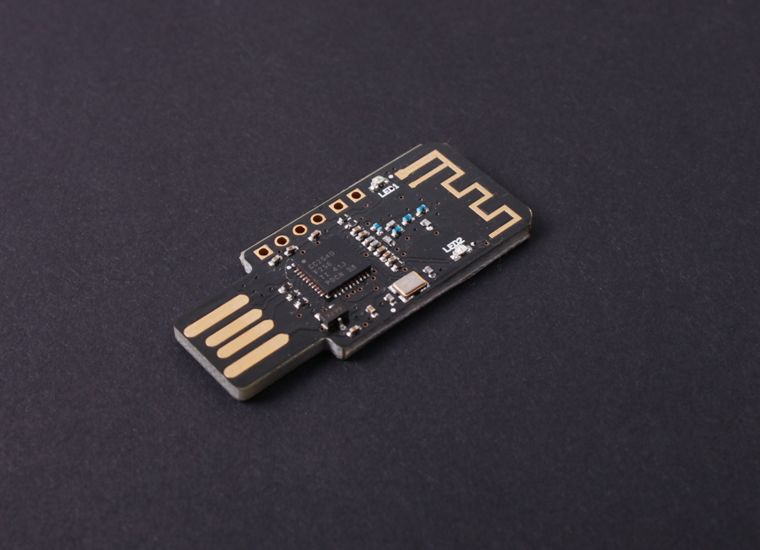

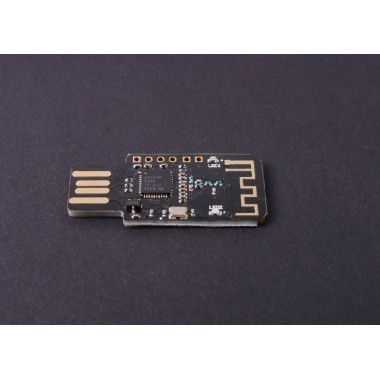

BLE Adapter For BLE Wiressless Progream and TTL
Adaptador BLE, permite cargar código a través de comunicación BLE inalámbrica. Al mismo tiempo, es un adaptador USB-TTL.
COD: EF03153
Peso: 0.008 Kg
Disponibilidad: En Stock
ARS 27073.00
El producto no está disponible para la venta en este momento
Características
Description
BLE Adapter, one of ElecFreaks BLE series items, can enable you to upload code by BLE wireless. At the same time, it is a USB-TTL adapter.
Adopting TI CC2540 chip with 256 KB space, the BLE module can use BLE technology through the simple IO control, between the module and mobile, also between the module and module. The BLE module has both Master and Slave Mode, with the command control, through the serial port capable of switching module master-slave role, capable of configuring the serial port baud rate, capable of modifying the module radio name, capable of modifying the broadcast interval and the connection interval. Using this module, users can quickly transmit data in the form of Bluetooth packet. BLE Adapter can cooperate with our BLEduino Main board.
Features
- Small size, light weight, UART interface, compatible with Bee Adapter
- Develop bands, working band of 2.4GHz
- Wireless transfer rate up to 1Mbps
- Using PCB antenna, the reliable transmission distance greater than 50 m
- BLE protocol depth optimization, standby power 60-800uA
- Master-Slave in one, arbitrarily switching
- Supporting Android 4.3, IOS, PC
- Immersion Gold Craft
- Operating voltage 3.3V
- Dimension 18*41mm
Applications
- Wireless programming
- Industrial remote control, telemetry
- Automotive testing equipment
- Portable, battery-powered medical equipment
- Automated data collection
- Bluetooth Printer
- Smart home, industrial control
Documents:
- Datasheet
- AT Command
- Schematics
- Specification
- user_guide
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
Read more: http://www.elecfreaks.com/store/ble-adapter-for-ble-wiressless-progream-and-ttl-p-790.html#ixzz3dXbxwAo2
Read more: http://www.elecfreaks.com/store/ble-adapter-for-ble-wiressless-progream-and-ttl-p-790.html#ixzz3dXbnDKkV
ef03152-at_command.pdf (187 Kb)
datasheet_ge.zip (1048 Kb)
