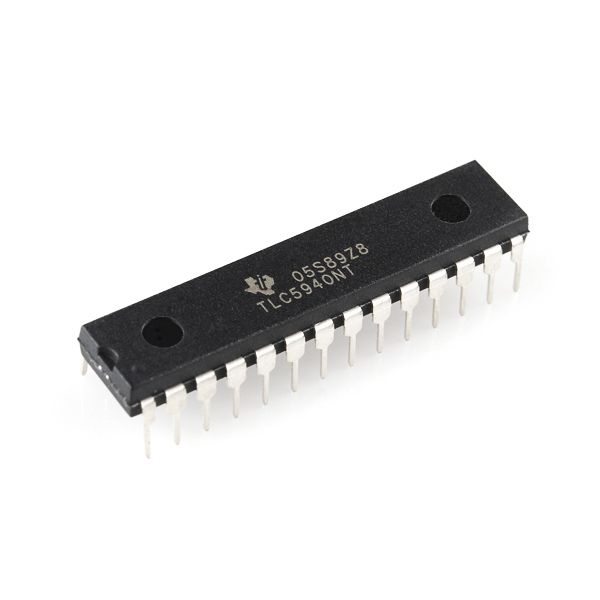

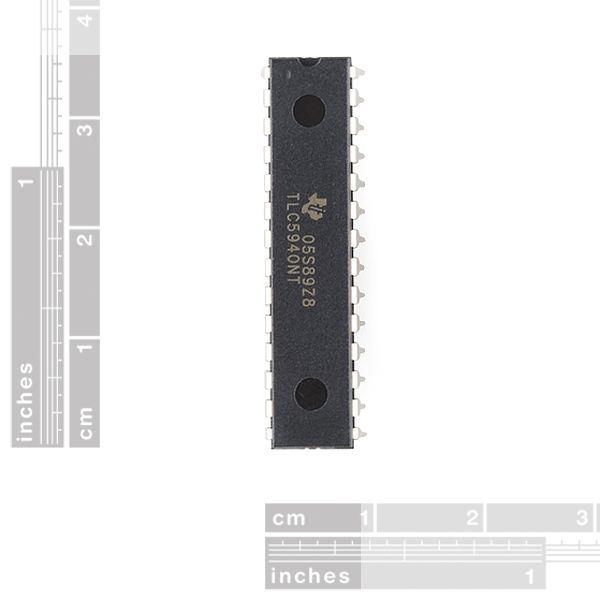

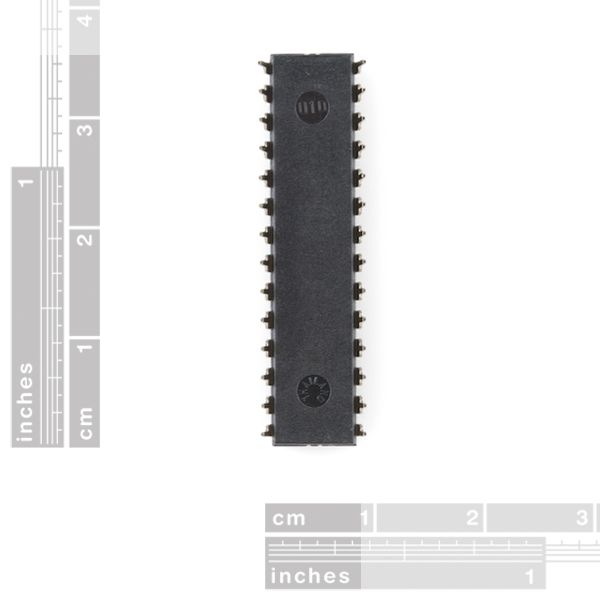

TLC 5940 - PWM Driver
Driver PWM de 16 canales y 12 bits, basado en TLC5940.
COD: SFCOM10136
Peso: 0.002 Kg
Disponibilidad: En Stock
ARS 13967.00
El producto no está disponible para la venta en este momento
Características
The TLC5940 is a 16 channel PWM unit with 12 bit duty cycle control (0 - 4095), 6 bit current limit control (0 - 63), and a daisy chainable serial interface. It is handy for expanding the number of PWM outputs available.
Features
- 16 Channels
- 12 bit (4096 steps) Grayscale PWM Control
- Serial Data Interface
- 30MHz Data Transfer Rate
- CMOS Level I/O
-
Drive Capability (Constant-Current Sink)
- 0mA to 60mA (VCC < 3.6V)
- 0mA to 120mA (VCC > 3.6V)
- 3V to 5.5V VCC
More information
Datasheet (1263 Kb)
