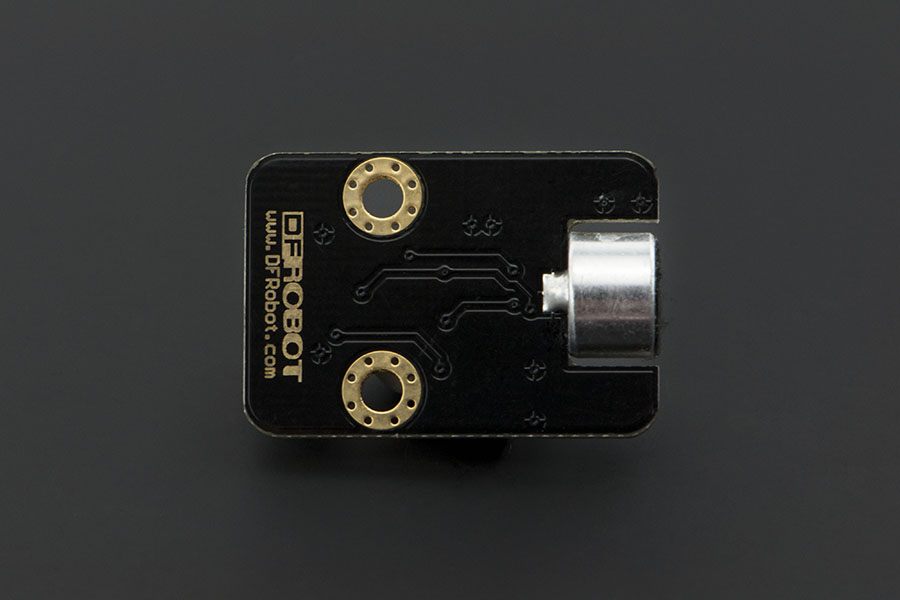

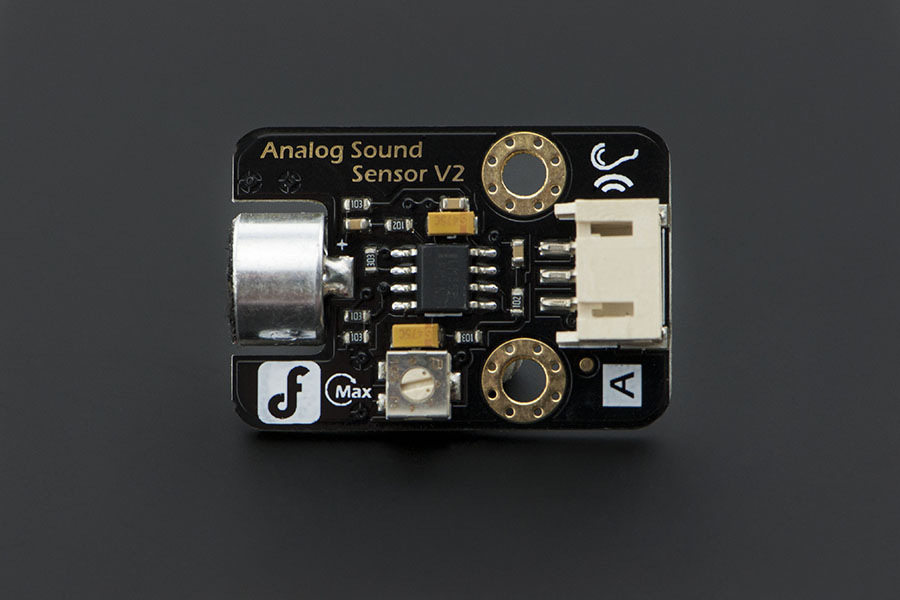

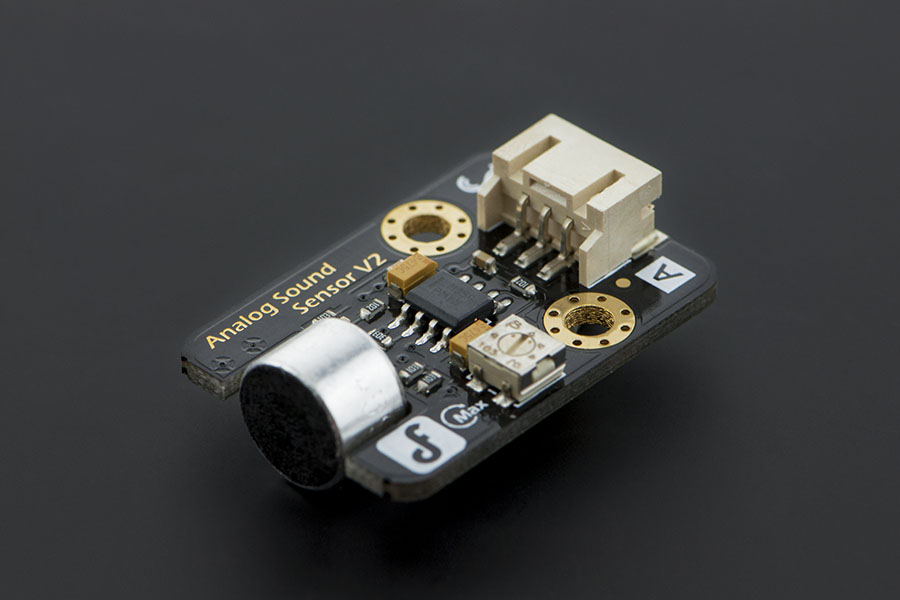

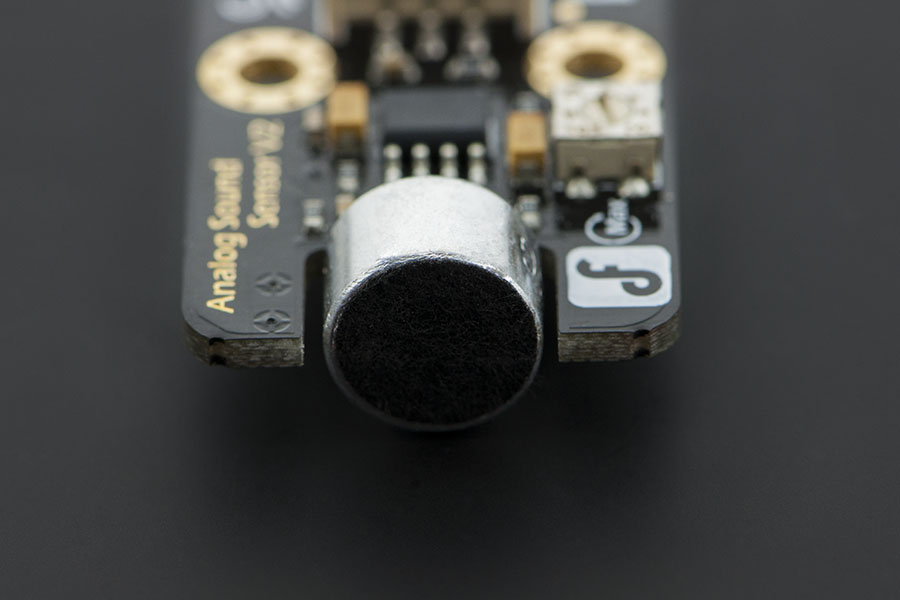

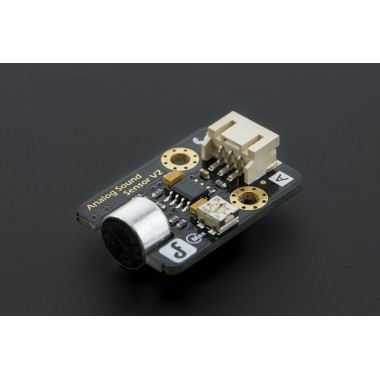

Analog Sound Sensor
Sensor de intensidad de sonido con salida analógica.
COD: DFR0034
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 17425.00
El producto no está disponible para la venta en este momento
Características
INTRODUCTION
This is an updated version of the Analog Sound Sensor. Analog Sound Sensor is typically used in detecting the loudness in ambient, the Arduino can collect its output signal and actuate accordingly. You may use it to make some funny interactive works such as a "clap and buzz" to find your lost keys or remote control if you add a buzzer. This sensor works best with our sound analyzer module.
As one of our new version of breakout boards, we have improved the analog sound sensor in below:
- Wide voltage range from 3.3V to 5V
- Standard assembling structure (two 3mm holes with multiple of 5cm as interval)
- Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
- Icons to simplely illustrate sensor function
- High quality connector
- Immersion gold surface
SPECIFICATION
- Supply Voltage: 3.3V to 5V
- Swift sound intensity detection
- Interface: Analog
- Size:22x32mm

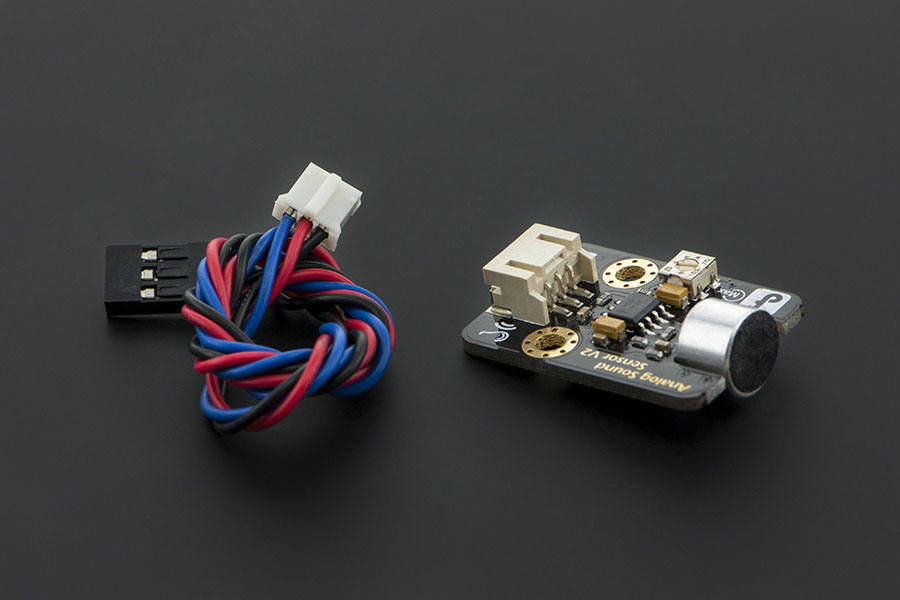

SHIPPING LIST
- Analog Sound Sensor x1
- Analog cable x1
Schematic (37 Kb)
