Kinetis FRDM-KL46Z

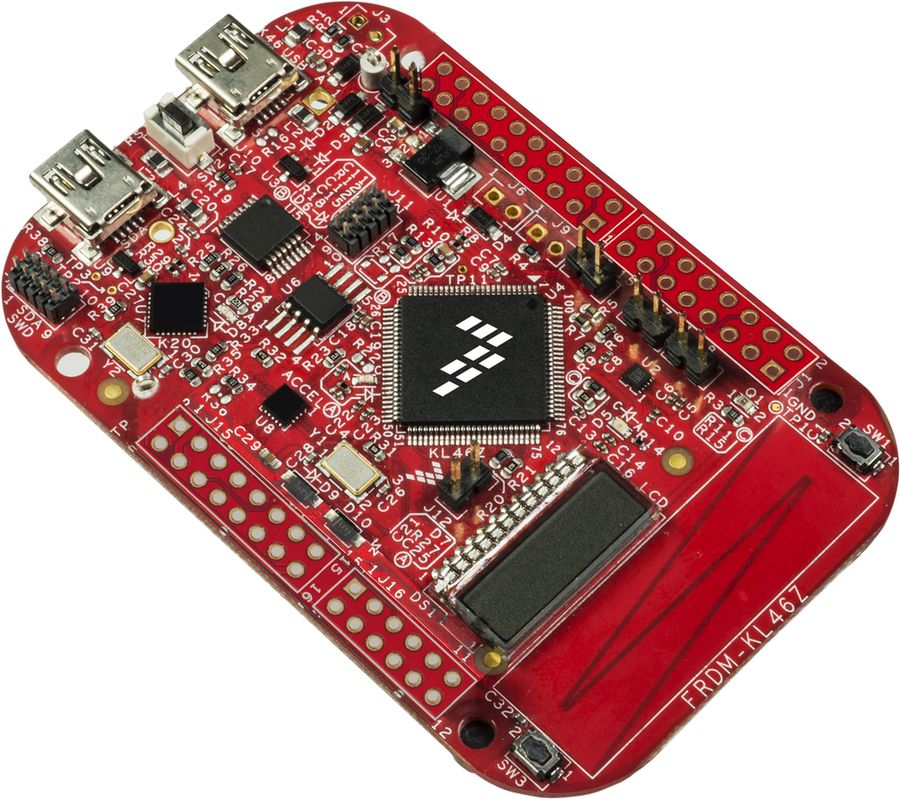

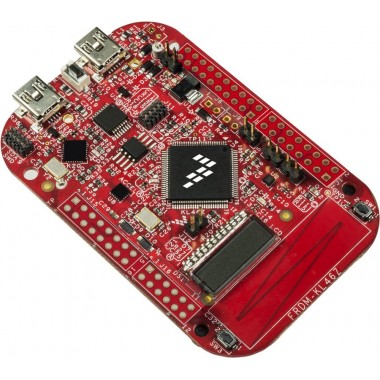

FRDM-KL46Z

Plataforma de desarrollo de bajo costo basada en familia Kinetis L series KL4x MCU, con procesador ARM® Cortex™-M0+. Incluye sensores inerciales y posee puertos compatibles Arduino.

COD: N87W8000

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 97120.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The FRDM-KL46Z is an ultra-low-cost development platform enabled by the Kinetis L series KL4x MCU family built on the ARM® Cortex™-M0+ processor. Features include easy access to MCU I/O, battery-ready, low-power operation, a standard-based form factor with expansion board options and a built-in debug interface for flash programming and run-control. The FRDM-KL46Z is supported by a range of Freescale and third-party development software.

Features

    • MKL46Z256VLL4MCU – 48 MHz, 256 KB flash, 32 KB SRAM, segment LCD, USB OTG (FS) , 100 LQFP
    • Capacitive touch slider, MMA8451Q accelerometer, MAG3110 magnetometer
    • Flexible power supply options – USB, coin cell battery, external source
    • Easy access to MCU I/O
    • Battery-ready, power-measurement access points
    • Form factor compatible with Arduino ™ R3 pin layout
    • OpenSDA debug interface
      • Mass storage device flash programming interface (default) – no tool installation required to evaluate demo apps
      • P&E debug interface provides run-control debugging and compatibility with IDE tools
      • CMSIS-DAP interface: new ARM standard for embedded debug interface
      • Refer to the FRDM-KL46Z user’s manual and OpenSDA user’s guide for more information

Related Software and Tools

  • CW-MCU10: CodeWarrior for MCUs (Eclipse IDE) - ColdFire, 56800/E DSC, Kinetis, Qorivva 56xx, RS08/S08, S12Z v10.6
  • PE_DRIVER_SUITE: Processor Expert Software, Microcontroller Driver Suite
  • TWR-KL46Z48M: Kinetis KL3x, KL4x Tower System Module
  • OPENSDA: OpenSDA Serial and Debug Adapter
  • MQX-RTOS-FOR-KINETIS-SDK: Freescale MQX™ RTOS for Kinetis SDK
  • FRDM-TWRPI: Tower Plug-In (TWRPI) Adaptor Board for Freescale Freedom Development Platform
  • KINETIS_SDK: Software Development Kit for Kinetis MCUs
